Dynamic Mechanical Analysis (DMA) vs DSC

Introduction

When assessing the thermal properties of a polymer, elastomer, or composite material, Differential Scanning Calorimetry (DSC) is universally the first stop. DSC maps the thermodynamic landscape: melting, crystallization, and glass transitions. However, a thermal phase change is only half the story. The ultimate performance of a part depends on how its mechanical properties change when exposed to heat and force.

This is where Dynamic Mechanical Analysis (DMA) steps in. While DSC focuses solely on heat flow, DMA goes a step further by evaluating a material's viscoelasticity—how rigid or how rubbery it behaves—as a function of time, temperature, and applied mechanical stress. Understanding when to use DMA over DSC, or how to pair them, unlocks the deepest insights into polymer engineering.

Measuring Viscoelasticity

Unlike traditional static tensile testers that pull a material until it breaks, a DMA applies an oscillating, sinusoidal force to an intact sample while it is heated or cooled in a furnace.

Because polymers are "viscoelastic" (exhibiting properties of both a viscous liquid and an elastic solid), they don't respond to force instantly. The DMA measures:

• Storage Modulus (E'): The elastic portion. How much energy the material stores and returns (like a stiff spring).
• Loss Modulus (E''): The viscous portion. How much energy is permanently dissipated as heat (how "dampening" the material is).
• Tan Delta (tan δ): The ratio of Loss Modulus to Storage Modulus. This perfectly quantifies the damping capability of the material.

The Glass Transition: DMA vs DSC

The most significant difference between the two techniques lies in how they detect the Glass Transition Temperature (Tg).

• DSC Detection: DSC detects the Tg as a weak step-change in heat capacity. For highly cross-linked polymers (like epoxies) or heavily filled composites (like carbon fiber), the matrix becomes so rigid that the heat capacity shift is negligible, making the Tg virtually invisible to DSC.

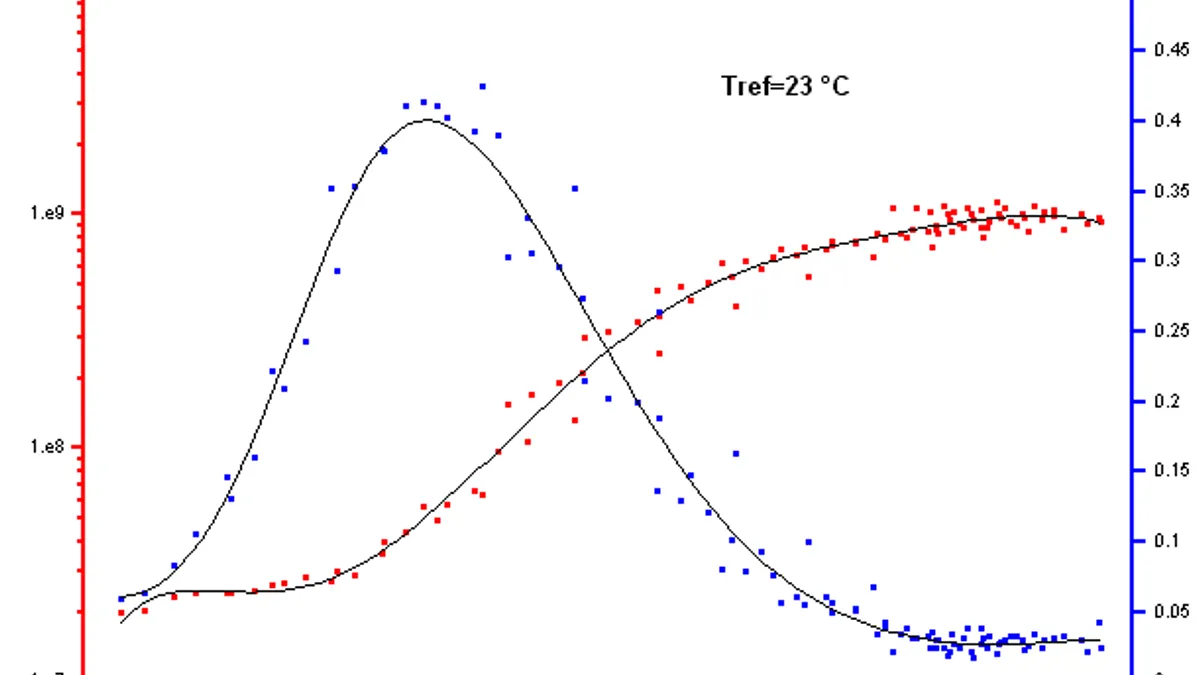

• DMA Detection: DMA detects the Tg via massive mechanical collapse. As a polymer crosses its Tg, its Storage Modulus drops precipitously—often by a factor of 1,000. At the same moment, the Tan Delta curve spikes into a massive, undeniable peak. DMA is roughly 10 to 100 times more sensitive to the glass transition than DSC.

If you are struggling to find a weak Tg in a composite resin using DSC, DMA will reveal it effortlessly.

Complex Scenarios and Case Studies

DMA is unparalleled when simulating real-world mechanical environments.

Case Study: Automotive Engine Mounts

An automotive manufacturer needed an elastomer mount to isolate engine vibrations. The material needed to remain bouncy (low Loss Modulus) during normal heat but provide high dampening (high Tan Delta) if vibrations became severe.

DSC testing confirmed the material's melting point was sufficiently high. However, only DMA, by varying the frequency of the mechanical oscillation from 1 Hz to 100 Hz, could prove that the elastomer hardened dynamically at high vibration frequencies, defeating the purpose of the mount. This frequency-dependent mechanical scan (Time-Temperature Superposition) is completely outside the realm of DSC.

Complementary Testing Workflows

World-class analytical suites, equipped with advanced METTLER TOLEDO thermal systems, utilize both.

1. Use DSC for baseline quality control, measuring crystallinity percentage, checking for unreacted resin, and tracking overall thermal purity.

2. Use DMA for advanced characterization: mapping secondary beta/gamma transitions that impact low-temperature impact resistance, tracking resin curing kinetics dynamically, and verifying end-use structural integrity.

Related Resources

Compare regulations, advanced literature, and specialized hardware:

• DSC Overview Platform
• Polymer Tg Mechanical Studies
• Advanced Thermal Training

Conclusion

While DSC expertly chronicles the thermal history and energetic phase shifts of a material, it cannot tell you if a polymer bridge will sag on a hot summer day. Dynamic Mechanical Analysis bridges the critical gap between thermodynamic theory and structural reality. By deploying DMA alongside DSC, engineers gain absolute mastery over the viscoelastic lifecycle of their advanced materials.
